DESCRIPTION

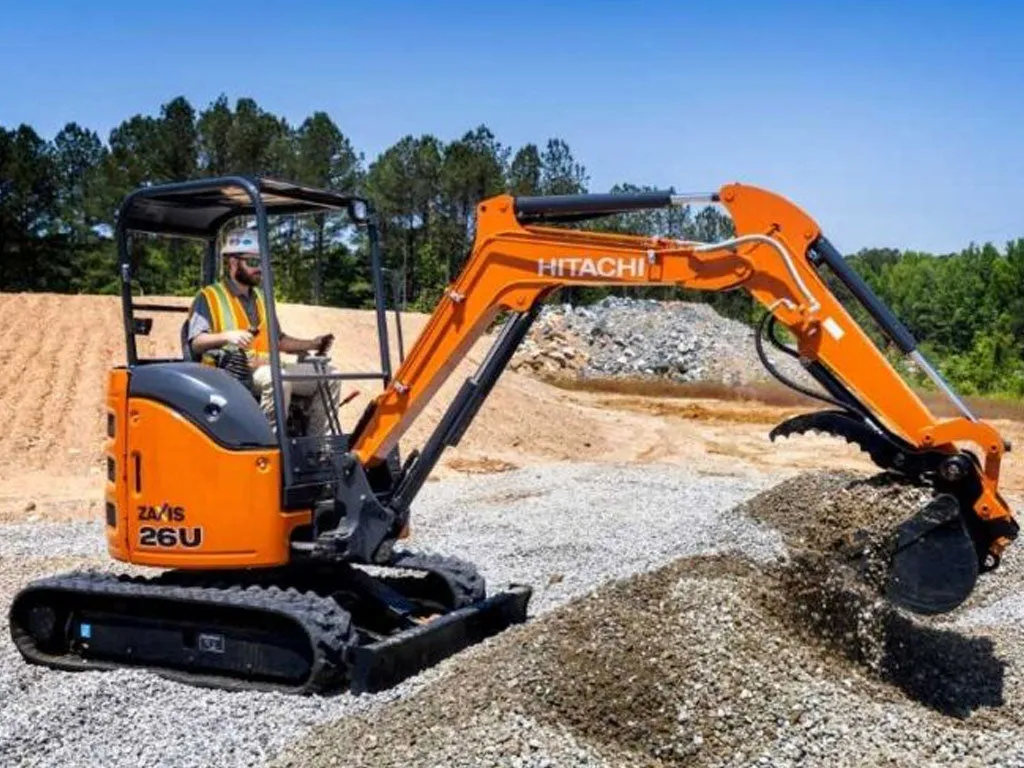

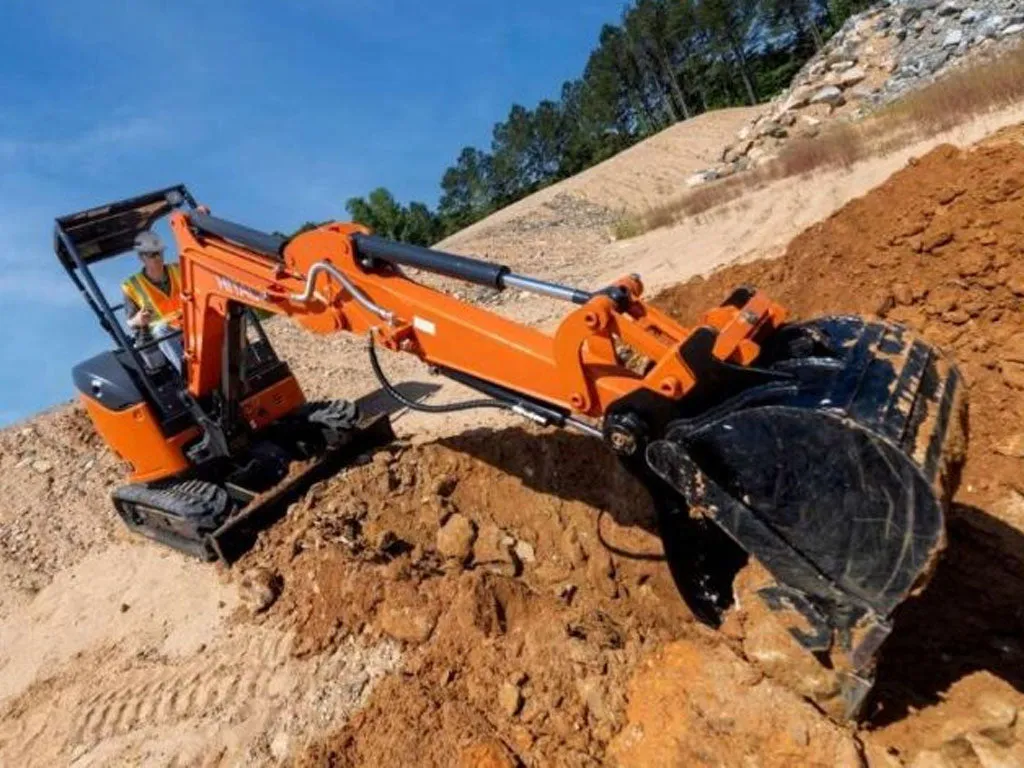

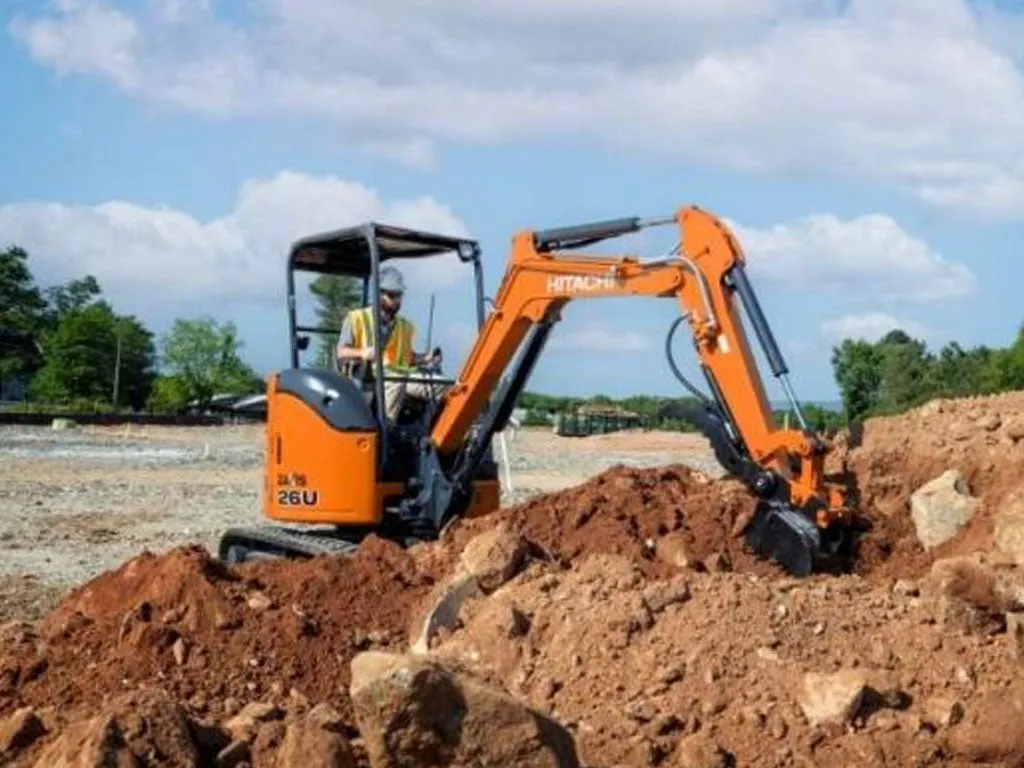

ZX26U-5N

COMPACT EXCAVATOR

• NET POWER - 20 HP
• OPERATING WEIGHT - 5,560 lbs.
• MAX DIG REACH - 15ft 2in
• MAX DIG DEPTH - 8ft 6in

INCLUDES

• OROPS OR CAB W/ AC

• WEDGE LOCK COUPLER
• 18" BUCKET
• FOB: WEST CHESTER OHIO (CALL FOR FREIGHT QUOTES)

BIG-TIME PERFORMANCE.

Although the Hitachi ZX26U-5N is one of our smallest excavators, it gives you big-time performance on all kinds of jobs. This machine is nimble and designed to keep its tail close to its tracks – so you can work where others can’t.

FEATURES

ADVANCED HYDRAULICS

VERSATILE CONTROLS

Auxiliary function lever (AFL) includes trigger, horn and analog switches that can be used for various attachments, like a breaker.

STRONG STRUCTURE AND UNDERCARRIAGE

Variable track width undercarriage with pin-type blade stowage system allows tight access.

EASY MAINTENANCE

Wide-open covers ease maintenance. Parallel-arranged cooling package facilitates cleaning.

COMFORTABLE CAB

3-pillar canopy, compatible with ROPS and OPG (Level 1) provides optimal visibility.

DURABLE BOOM/ARM

Boom hoses are routed to protect from damage. HN bushing applied on front attachment joints provides better grease retention.

SPECS

ZX26U-5N SPECIFICATIONS

ENGINE

UPPERSTRUCTURE

Model

Yanmar 3TNV80F

Swing Device

Type

4-cycle water-cooled, vertical in-line special swirl combustion chamber injection

Axial piston motor with planetary reduction gear is bathed in oil. Swing circle is single row. Swing parking brake is spring-set / hydraulic released disc type

Aspiration

Natural

Swing speed

9.1 rpm

Aftertreatment

—

Swing torque

2,655.2 lbf-ft (3.6 kNm)

No. of cylinders

3

Max boom swing angle, left / right

60 degrees / 70 degrees

Rated power

ISO 14396: Gross

20.7 hp (15.2 kW) at 2,500 rpm

UNDERCARRIAGE

ISO 9249: Net

20.3 hp (14.9 kW) at 2,500 rpm

Tracks

Maximum torque

48.4 lbf-ft (65.6 Nm) at 1,800 min-1

Tractor-type undercarriage. Welded track frame using selected materials. Side frame welded to track frame

Piston displacement

77 cu. in. (1.266 L)

Bore and stroke

3.1" x 3.3" (80 mm x 84 mm)

Numbers of Rollers and Shoes on Each Side

Batteries

1 x 12 V/36 Ah

Upper rollers

1

Lower rollers

4

HYDRAULIC SYSTEM

Travel Device

Hydraulic Pumps

Each track driven by 2-speed axial piston motor. Parking brake is spring-set / hydraulic-released disc type. Automatic transmission system: High-Low.

Main pumps

Open-center with 2 variable-displacement, 1 fixed-gear pump and 1 pilot pump pumps

Maximum oil flow

2 x 7.9 gal/m (2 x 30.0 L/min)

Travel speeds

High: 0 to 2.8 mph (0 to 4.5 km/h)

Pilot pump

1 gear pump

Low: 0 to 1.8 mph (0 to 2.9 km/h)

Maximum oil flow

8.9 gal/m (33.6 L/min)

Maximum traction force

4,518.7 lbf (20.1 kN)

Auxiliary flow

12.2 gpm (46.30 L/min)

Auxiliary pressure

2,495 psi (17.2 Mpa)

Gradeability

47% (25 degree) continuous

Hydraulic Motors

Travel

2 variable displacement axial piston motors

ENVIRONMENT

Swing

1 axial piston motor

Engine Emissions

EPA Final Tier 4

Relief Valve Settings

Sound Level

Implement circuit

3,553.4 psi (24.5 MPa)

Sound level in canopy according to ISO 6396: 2008

*LpA 79.4(right) / 79.7(left) dB(A)

Swing circuit

2,697.7 psi (18.6 MPa)

Travel circuit

3,553.4 psi (24.5 MPa)

Sound level in cab according to ISO 6396: 2008

*LpA 79.3(right) / 80.5(left) dB(A)

Pilot circuit

594.7 psi (4.1 MPa)

External sound level according to ISO 6395: 2008

*LwA 94.9(canopy),94.8(cab) dB(A)

Hydraulic Cylinders                                                     Unit: in (mm)

Quantity

Bore

Rod diameter

Boom (Canopy)

1

3.0" (75)

1.8" (45)

SERVICE REFILL CAPACITIES

Boom (Cab)

1

3.0" (75)

1.8" (45)

Unit: gal (L)

Arm

1

2.6" (65)

1.6" (40)

Fuel tank

8.3 (31.3)

Bucket

1

2.2" (55)

1.4" (35)

Engine coolant

0.8 (3.12)

Blade

1

3.0" (75)

1.8" (45)

Engine oil

0.9 (3.69)

Boom swing

1

3.0" (75)

1.6" (40)

Travel device (each side)

0.2 (0.6)

Hydraulic system

10.3 (39.0)

Hydraulic oil tank

6.4 (24.1)





You May Also Like

Brock's Vulpix (37/132) [Gym Challenge Unlimited]

$ 45.01

$ 58.51

Aqua Lung I550 Compass Boot

$ 28.99

Adidas Adizero Ubersonic 5 All Court Tennis Shoes (Ladies) - Lucid Red/Zero Metalic/Lucid Pink

$ 63.76

$ 82.89

Women's Vintage Gym Hoodie

$ 75.00

Hex Dumbbell 15lbs Black - All in Motion

$ 13.99

$ 29.99

Tangerine color block leggings

$ 10.00

$ 38.00

Tennis Charm Keychain, Christian Faith Charm Keychain, I Can Do All Things Through Christ Who Strengthens Me

$ 10.99

$ 12.99

Nike Court Zoom NXT Tennis Shoes - White/Washed Teal/Light Silver

$ 57.98

$ 75.37

War at West Gym singlets

$ 35.00

Asics Gel-Resolution 9 Wide Men Tennis Shoes - Mako Blue/Safety Yellow

$ 50.01

$ 65.01

＋

• Home
• Season loved
• Synchronized ＋
  • Track Shoes
  • Outdoor Snug Shoes
• Non-slip ＋
  • Sport specific Shoes
  • Soccer Boots
  • Gym Shoes
• Track Shoes ＋
  • Comfortable Track Shoes
  • Sporty Track Shoes
• Lawn Tennis Shoes ＋
  • Active Lawn Tennis Shoes
  • Light Lawn Tennis Shoes
  • Anti-Microbial Lawn Tennis Shoes

Cart

＋

Your cart is currently empty.

Total:

VIEW CART

WEIGHTS AND GROUND PRESSURE

Operating Weight and Ground Pressure

Shoe width Unit: in (mm)

Operating weight Unit: lb (kg)

Ground pressure Unit: psi (kPa)

Rubber track and Canopy

12" (300mm)

5,560 lb (2,520 kg)

3.6 psi (25.0 kPa)

Rubber track and Cab

12" (300mm)

5,890 lb (2,670 kg)

3.8 psi (25.9 kPa)

With 3' 10" (1.17 m) Standard arm, Standard counterweight, Rubber track, Full fuel tank and 175 lb (79 kg) Operator

BASIC MACHINE WEIGHT AND COMPONENTS WEIGHT

Components Weight

Unit: lb (kg)

Counterweight (Canopy)

531 lb (241 kg)

Counterweight (Cab)

459 lb (208 kg)

BUCKET AND ARM DIGGING FORCE
